The KOMOS® gas manifold features 1/4" flare gas inlet and check valves for much more flexibilty when choosing your draft line. Use 1/4" or 5/16" gas line with the appropriate Flare Fitting Set (1/4 Swivel Set or 5/16 Swivel Set), or use EVABarrier Draft Tubing with the appropriately sized Duotight fitting (8mm Flare Fitting or 9.5mm Flare Fitting).
The check valves can also be replaced with a Gas Ball Lock Post Bulkhead, allowing for the use of a gas-in ball lock jumper line as a quick connect option.
If more than 4 outlets are needed, join multiple manifolds together with this 1/4" Gas Manifold Nipple.
- 1/4" Flare connections
- 1/4" BSP ball valves
- Rated to 100 psi
- Wall mount holes
- Made from aluminum, brass, and stainless steel

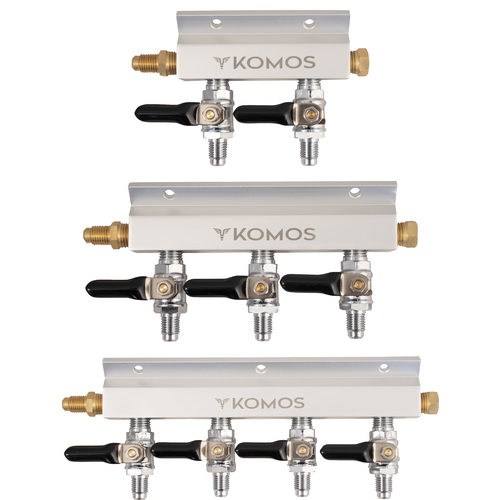

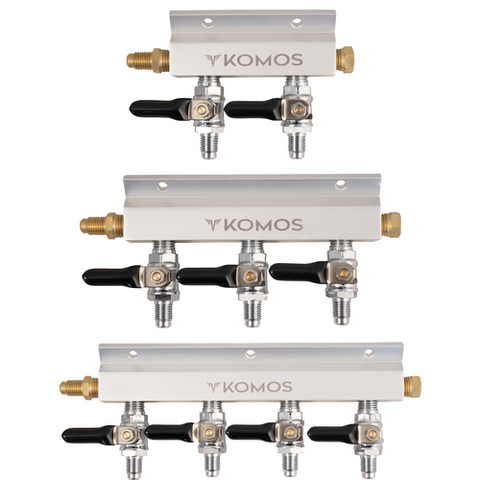

Manifold Overall Length

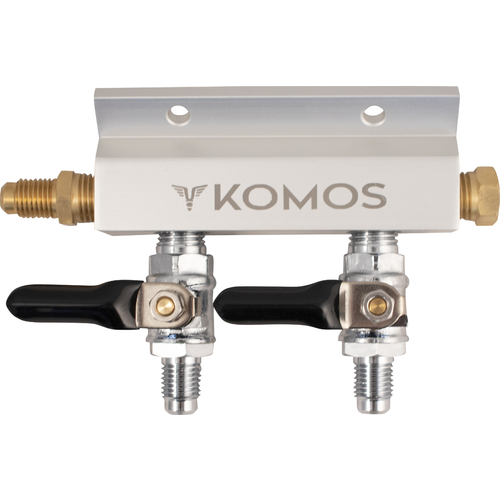

- 2-Way: 5.25 inches

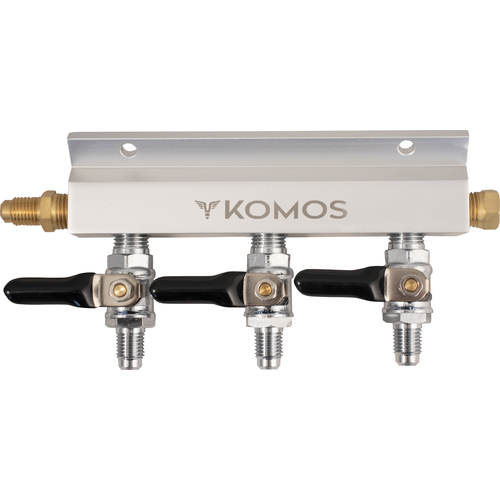

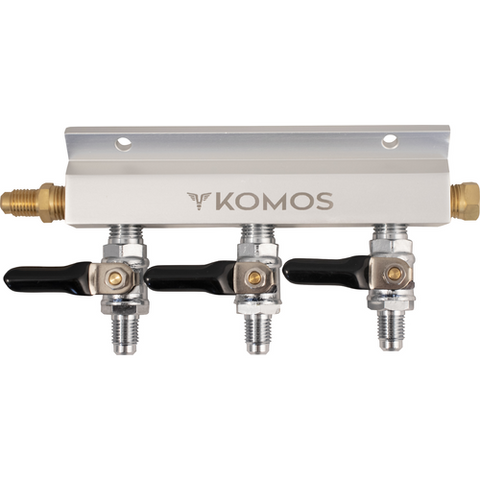

- 3-Way: 7.25 inches

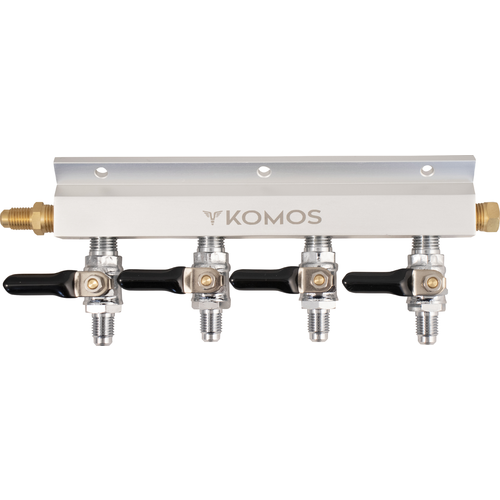

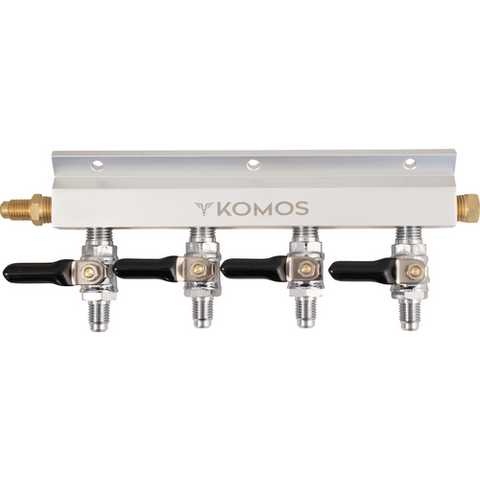

- 4-way: 9.25 inches
The above measurements are from the tip for the brass flare inlet to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.
