Spike Brewing TC Kettle Accessories
Craft Meister Alkaline Wash
Quickly breaks down the toughest soils but will not burn your skin or damage stainless steel, plastic, or glass. Reduces calcium carbonate and oxalate residues that oxygen cleaners leave behind. Powder dissolves quickly in hot or cold water and works in all water conditions. Removes labels from bottles in minutes! Not for use on aluminum.Cleans brew kettles, corny kegs, fermentors, fittings, tubing and bottlesUse on glass, plastic and stainless steelWorks in hot or cold water and rinses freelyNo chalky build-upMaterial Safety Data Sheet (MSDS)
$11.99 - $229.99
1/2" ID Silicone Tubing
Tasteless, odorless, and food grade approved from -100F to 500F. This tubing is rated to 20 PSI and will burst at 30 PSI at 70F. It is not recommended for use with an impeller pump or household water pressure. 1/2" ID 7/8" OD 30 PSI Burst at 70F Platinum Cured
$3.60 - $324.99
1.5'' Tri-Clamp, Stainless Steel
1.5" Stainless Steel Tri-Clamp
$8.00
1.5" EPDM Gasket
1.5 inch TC (tri-clamp) gasket made from FDA approved EPDM
$2.00

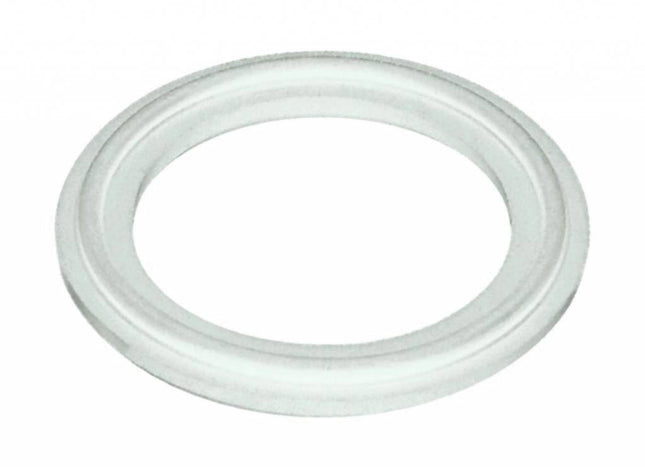

Silicone Gasket, 1.5'' TRI-CLVR
Silicone gasket for 1.5" TC fittings.
$1.50
2" EPDM Gasket
2 inch TC gasket made from FDA approved EPDM
$2.00

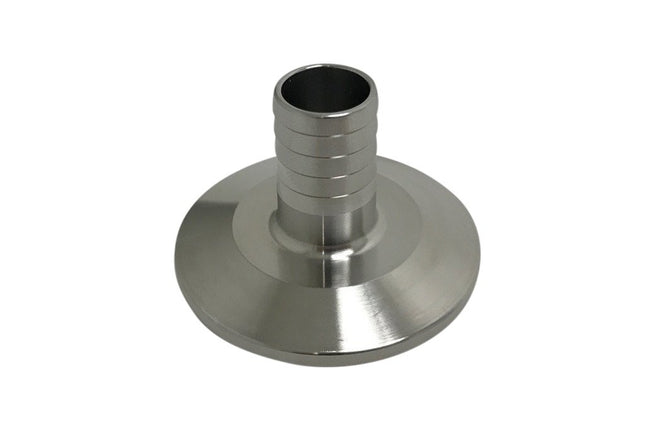

1.5" TC x 5/8" OD Barb
Not all hose barbs are created equal! The Spike Brewing special 1.5" TC x barb fitting features a shorter profile and over sized diameter barb. The over sized barb (5/8" OD) is specially designed for 1/2" Silicone tubing. The larger size does two things: It stretches the tubing over the barb creating a tight fit requiring no hose clamps. The inside diameter of our barb is 1/2" compared to standard 1/2" barbs which have a smaller 3/8" size. This creates a full port design and will not restrict flow going through the barb. Specifications: 304SS 1.5" TC x 5/8" barb 1/2" ID
$14.00
Quick Connect Fitting - FQC x Barb
Out of all the ways to attach silicone tubing to your brew kettle we like quick connect ball lock fittings the most. The ease of connecting/disconnecting and cleaning is unmatched by standard hose barbs, cam locks or tri-clamps. These fittings can easily be attached using one hand even with heavy brewing gloves. The over sized barb (5/8" OD) is specially designed for our 1/2" silicone tubing. The larger size does two things: It stretches the tubing over the barb creating a tight fit requiring no hose clamps. The inside diameter of our barb is 1/2" compared to standard 1/2" barbs which have a smaller 3/8" size. This creates a full port design and will not restrict flow going through the barb. Specificatioins: 304SS 5/8" barb x QC 1/2" ID
$17.00

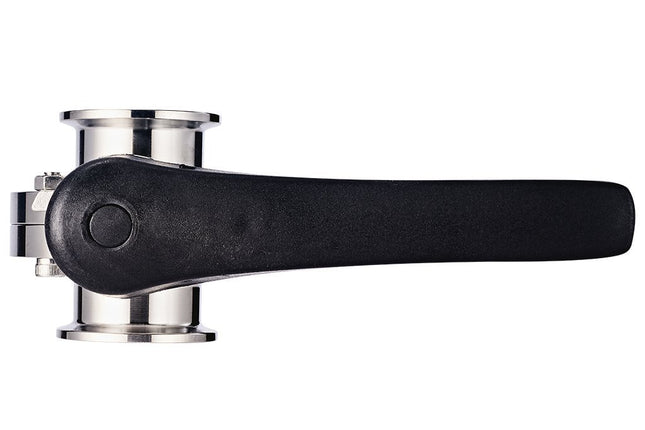

1.5" TC Butterfly Valve
This 1.5” TC butterfly valve can be used on Spike+ kettles. This valve has a squeeze locking/trigger handle that allows for 180 degrees of motion and 13 locking positions.The handle is a special 'shorty' style which keeps a compact design. This handle is made from extremely durable glass reinforced nylon which is much lighter than metal handles. Specifications: 1.5" TC 304SS metal components FDA silicone seals Light and durable fiber reinforced nylon handle Squeeze trigger with 13 locking positions
$65.00

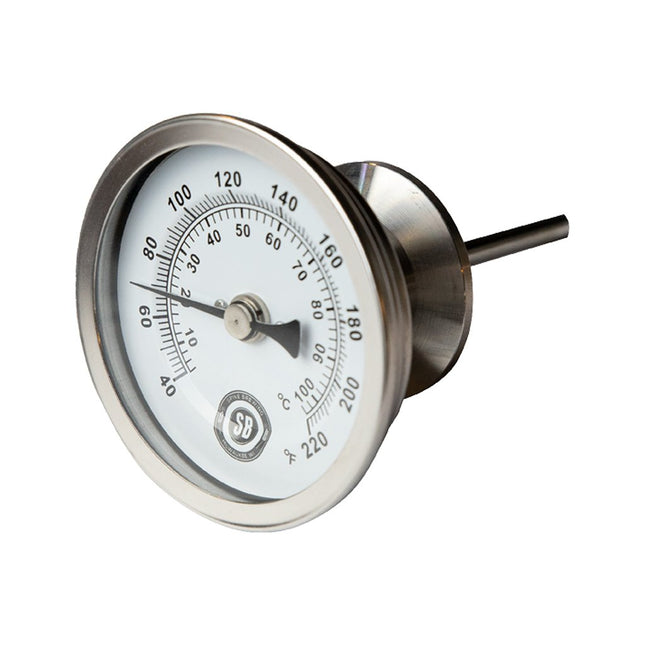

TC Thermometer
The Spike Brewing 1.5" TC thermometer will connect directly to the 1.5" port on your kettle. There is no need for a thermowell which allows for quicker more accurate temp readings. It can be used with direct fired kettles but avoid having the flame lapping directly onto the thermometer. **A 1.5" gasket and clamp will need to be purchased separately if you do not already have spares** Specifications: 1.5" TC connection 3" dial 304SS 2.5" stem length Hermetically sealed Calibration adjustment screw
$35.00

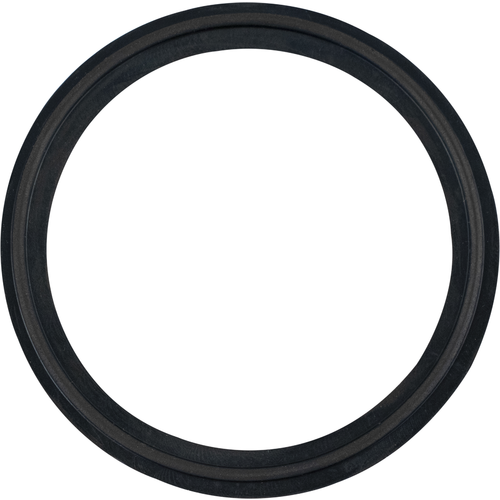

3" EPDM Gasket
EPDM gasket for 3" tri-clamp connection. Temperature rated from -30°F to 300°F.
$1.99

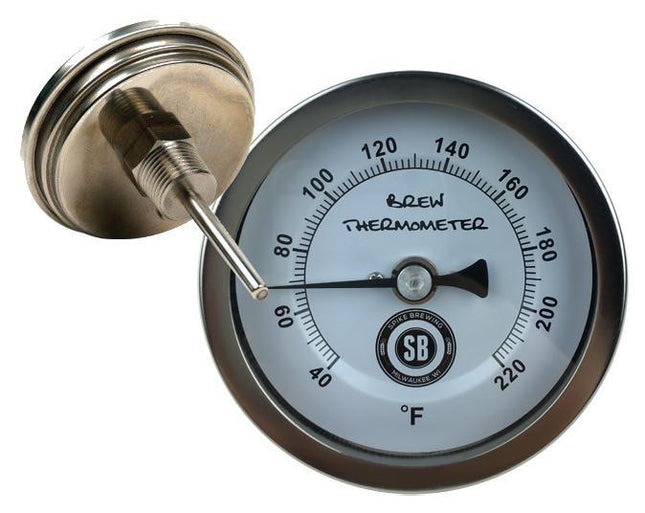

Thermometer - Non Adjustable Face
This Spike Brewing 1/2” NPT Brew Thermometer is ready to screw directly into the kettle. This 2.5” stemmed thermometer can cover 40-220 degree ranges. The 3” glass dial will display all the information you need at a glance and while withstanding the high heat from the burner below. The thermometer also has calibration screw for added accuracy.
$30.00
1.5" TC x QC (Quick Connect)
Out of all the ways to attach silicone tubing to your brew kettle or conical, quick connect ball lock fittings are a great option. The ease of connecting/disconnecting and cleaning is unmatched by standard hose barbs or cam locks. These fittings can easily be attached using one hand even with heavy brewing gloves. The inside diameter of this quick connect fitting is 1/2". This creates a full port design and will not restrict flow going through the barb. Specifications: 304SS 1.5" TC x QC 1/2" ID
$17.00

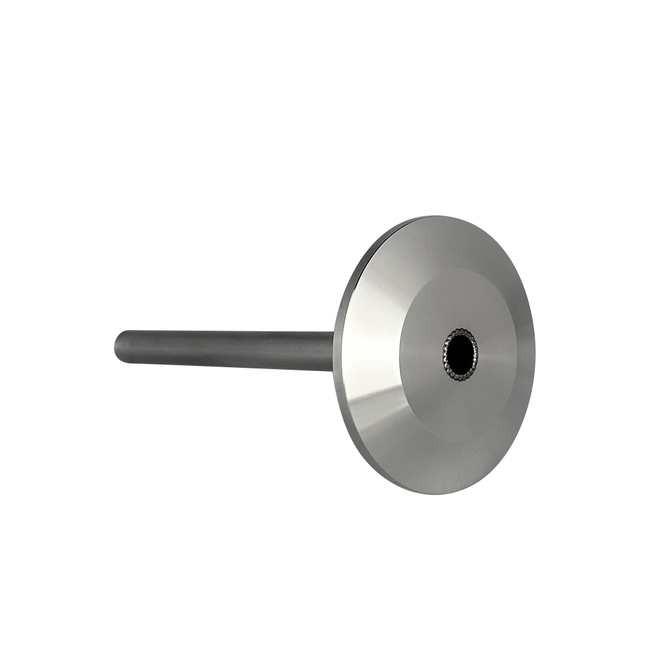

1.5" TC Thermowell
Spike Brewing's thermowell features a 1/4" temp probe opening on the outside which is mounted to a 1.5" TC fitting. This allows it to attach directly to the sanitary TC fitting on the conical. It also allows for an optional digital temp sensor to be attached. The probe is completely sealed from the outside. Pro Tip:The thermowell can be packed with thermal grease to help temperature response times. Specs: 1.5" TC 304SS 4” long 0.250" ID
$30.00

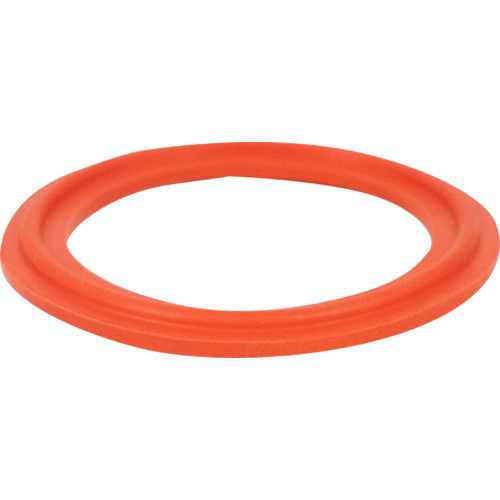

ForgeFit - 1.5" EPDM TC Gasket - Red
EPDM gasket for 1.5" tri-clamp connection with a temperature range of -30°F to 300°F. Use color-coded gaskets for different applications to avoid cross contamination. Red is commonly used to mark Brettanomyces rubber in breweries that separate brett from brewing yeasts.
$2.00

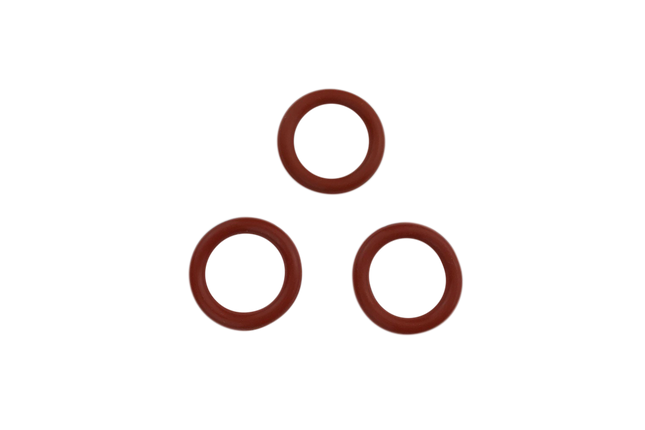

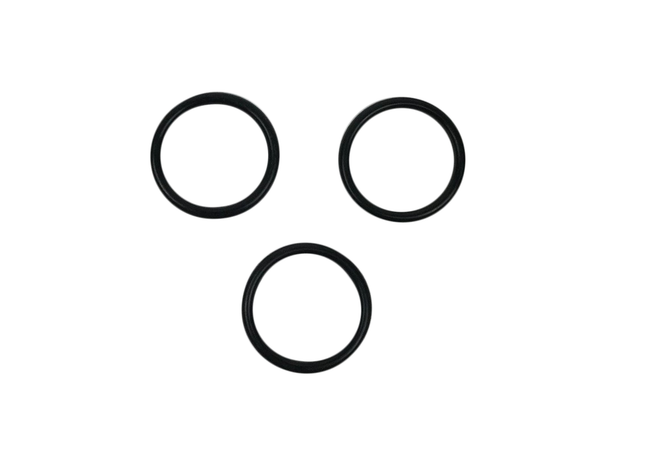

Quick Connect Replacement O-Rings
Set of 3 replacement o-rings for quick connect fittings. Specifications: Silicone o-ring Sold in set of 3
$3.00

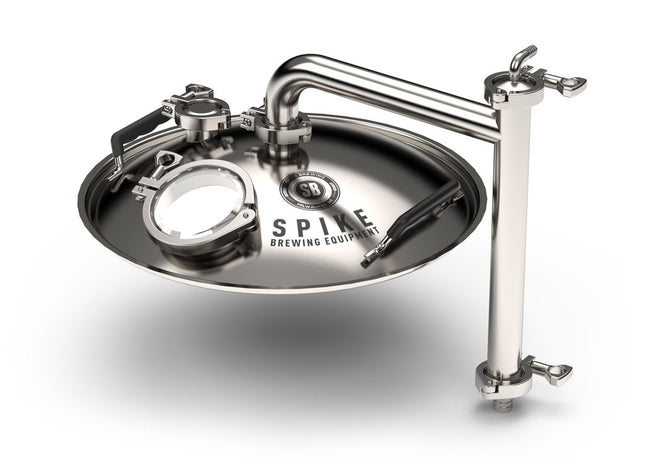

Steam Condenser Lid
Built to transform steam into liquid during the boil, Spike Brewing's steam condenser lid will enable you to brew inside without worrying about moisture collecting on your walls and ceiling, which can cause mold issues. These lids are not only designed to fit Spike kettles, but will also work with most other kettle brands on the market. From a better boil-off rate to major cost savings and conveniences, you will find many benefits by adding this to your brew setup. Features & Specs: Compared to boiling without a lid, the Steam Condenser Lid has a 50% reduced boil-off rate and results in a ~6% total boil-off. Replaces the need to install a hood for indoor brewing Prevents mold from forming on walls and ceiling Third-party lab tested to show that DMS is completely undetectable (under 25 ppb) after only 30-45 minutes of boiling Discharge water is very hot and can be used for cleaning Compatible with Spike Kettles and the Spike Solo 1.5" tri-clamp port for CIP ball 4" tri-clamp port for hop additions Water usage: 15 gallons/hour for 10g, 15g & 20g lids 25 gallons/hour for 30g &. 50g lids Lid, pump, condenser mister, piping, clamps, gaskets, barbs & caps included with purchase For more information, see Spike Brewing's FAQ. To get started using the lid, see our Steam Condenser Lid Product and Process guides. Note: Limited inventory availability in-store. Sizes not carried in-store will be drop shipped from the vendor.
$360.00 - $475.00
1.5" TC Element - 240v
Spike Brewing 1.5" TC Ripple Element Specifications: 240 Volt, 5500 Watt Stainless Element Includes 1.5" TC Gasket and Clamp
$100.00

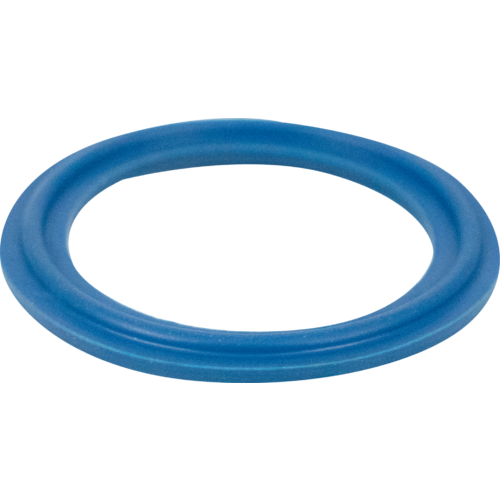

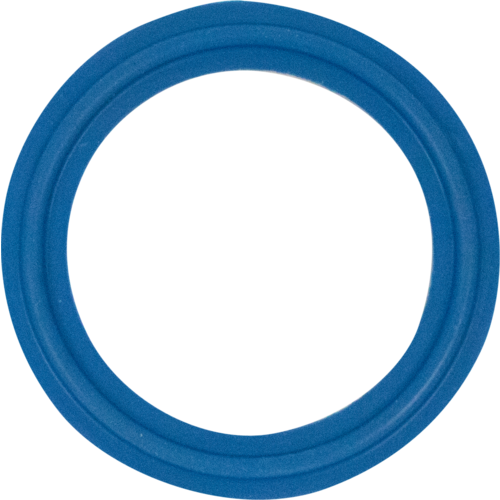

ForgeFit - 1.5" EPDM TC Gasket - Blue
EPDM gasket for 1.5" tri-clamp connection with a temperature range of -30°F to 300°F. Use color-coded gaskets for different applications to avoid cross contamination.
$2.00

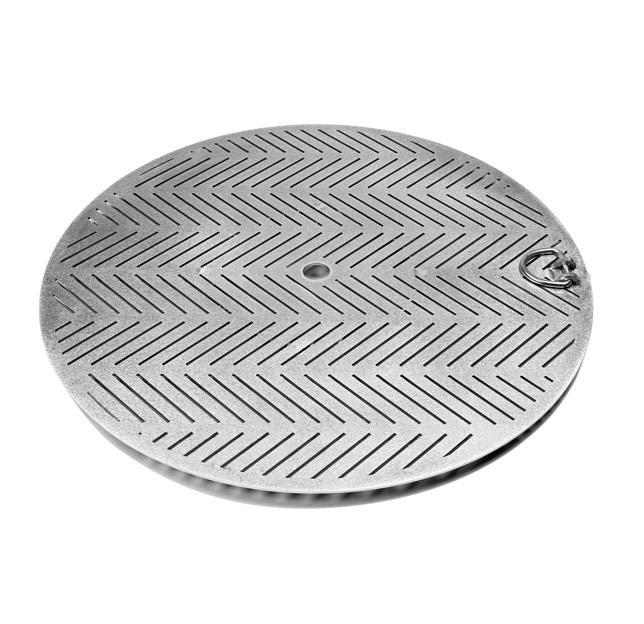

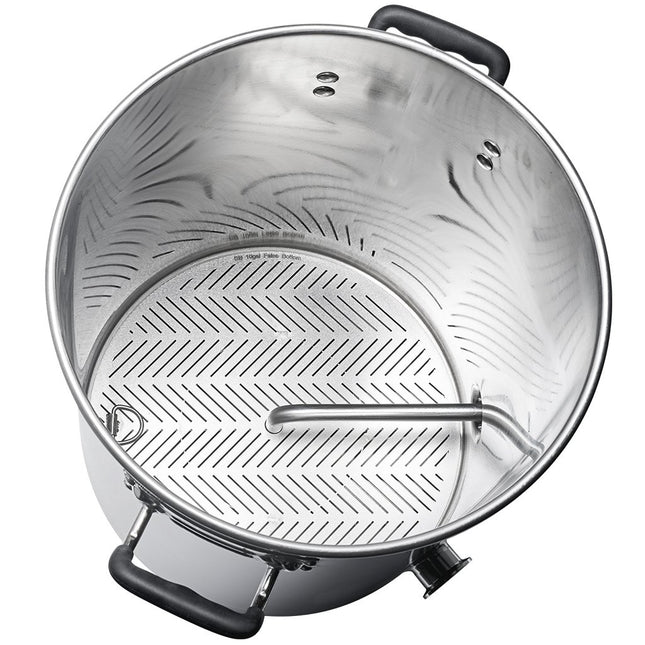

Spike Brewing False Bottom for TC Kettles
These Spike Brewing Spike+ false bottom is for use with their Spike+ line which uses TC fittings. For the standard Spike kettle line that uses NPT fittings please see HERE. Design Features: All stainless design; no Silicone gasket to make a seal Low profile design; extremely low dead space (<.25gal) Best filtering on the market due to dual stage filter design; 99.9% grain filtering efficiency TC Pickup tube, gasket and clamp are included False bottom and pick up tube are Made in the USA! 2 Stage Filtering: Stage 1: Filters through top plate's optimally engineered sized laser cut slits Stage 2: Bottom ring supports the grain weight while also filtering the wort again before it reaches the pickup tube **False bottoms are not designed to filter pellet hops in the boil kettle. Instead you'll want to create a whirlpool to center the hop material and then drain using a side pickup (HERE)**
$135.00 - $250.00
Spike+ Pickup Tube - Side
The Spike+ side pickup is specially designed to work with Spike Brewing's Spike+ line of kettles. The dual 1.5" TC flange allows the pickup tube to attach to the kettle and have a valve or other 1.5" TC accessory attached to the outside. They use 5/8" tubing which flows up to 4x better than their competitors 1/2" size. Recommend Uses: Boil Kettle - Create a whirlpool inside your kettle so hop material collects in the center of the lower stepped section. The side pickup will drain clear wort from the side, above the stepped bottom, avoiding the hop and trub material which has settled. Custom Kettles - Works as a top re-circulation arm or a whirlpool arm. Features: One size fits all Spike+ kettles Oversized 5/8" diameter 304 stainless tube Sized to pick up from above the stepped bottom to avoid hop/trub pickup Rotatable from the outside when installed Made in the USA **A 1.5" gasket and clamp will need to be purchased separately if you do not already have spares**
$34.00
Spike+ Pickup Tube - Shorty
The Spike+ shorty pickup is specially designed to work with Spike Brewing's Spike+ line of kettles. The dual 1.5" TC flange allows the pickup tube to attach to the kettle and have a valve or other 1.5" TC accessory attached to the outside. They use 5/8" tubing which flows up to 4x better than their competitors 1/2" size. Features: One size fits all Spike+ kettles Oversized 5/8" diameter 304 stainless tube Sits on the bottom of the kettle for very low volume losses Made in the USA **A 1.5" gasket and clamp will need to be purchased separately if you do not already have spares**
$34.00
Pickup Tube Replacement O-Rings
Set of 3 replacement o-rings for the Spike Brewing 5/8" quick connect pickup tube fittings. Specifications: FDA approved Buna-N Sold in set of 3
$2.50
HERMs Coil Replacement O-Rings
Set of 3 replacement o-rings for the Spike Brewing 1/2" quick connect HERMs coil fittings. Specifications: FDA approved Buna-N Sold in set of 3
$3.00
Adjustable Thermometer
This Spike Brewing adjustable face dial thermometer can be orientated 360 degrees so reading the thermometer is easier. This 1/2” NPT Brew Thermometer is ready to screw directly into the kettle. This 2.5” stemmed thermometer can cover 40-220 degree ranges. The 3” glass dial will display all the information you need at a glance and while withstanding the high heat from the burner below. The thermometer also has calibration screw for added accuracy.
$40.00

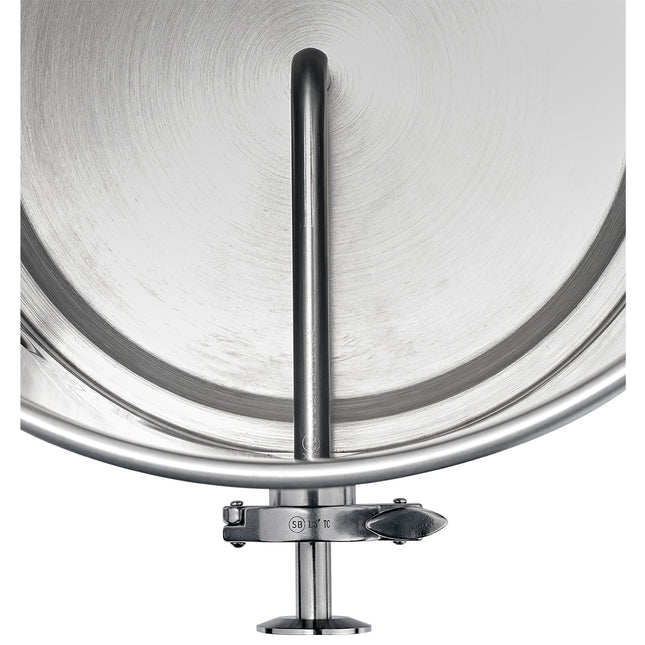

Spike+ Pickup Tube - Center
The Spike+ center pickup is specially designed to work with the Spike+ line of kettles. The dual 1.5" TC flange allows the pickup tube to attach to the kettle and have a valve or other 1.5" TC accessory attached to the outside. Spike Brewing uses 5/8" tubing which flows up to 4x better than their competitors 1/2" size. Features: Oversized 5/8" diameter 304 stainless tube Sized to pick up from the center of the kettle Made in the USA **A 1.5" gasket and clamp will need to be purchased separately if you do not already have spares**
$40.00 - $45.00
