Description
Convert a threaded connection to a 2" tri-clamp connection with ease. The Create+ Threaded Adapter Set converts a DN40 (or 1 ½ " BSPP) threaded connection to a 2" tri-clamp connection, allowing you to connect your existing Still Spirits Alembic or T500 distilling setup to 2"tri-clamp accessories.
Refer to instructions for information on how to convert your specific equipment.
DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.
Key Features
- Convert from DN40 (or 1 ½ " BSPP) threaded connection to 2" tri-clamp connection
- Connect to 2" tri-clamp distilling accessories
- 304 grade stainless steel construction
- High temperature resistant food grade silicone
Specifications
- Dimensions: 80mm x 80mm x 65mm
- Weight: ~400g Approx.
NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
- A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
- A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
NOTE: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
Included in Box
- DN40 Nut
- Sieved Gasket
- Silicone Gasket

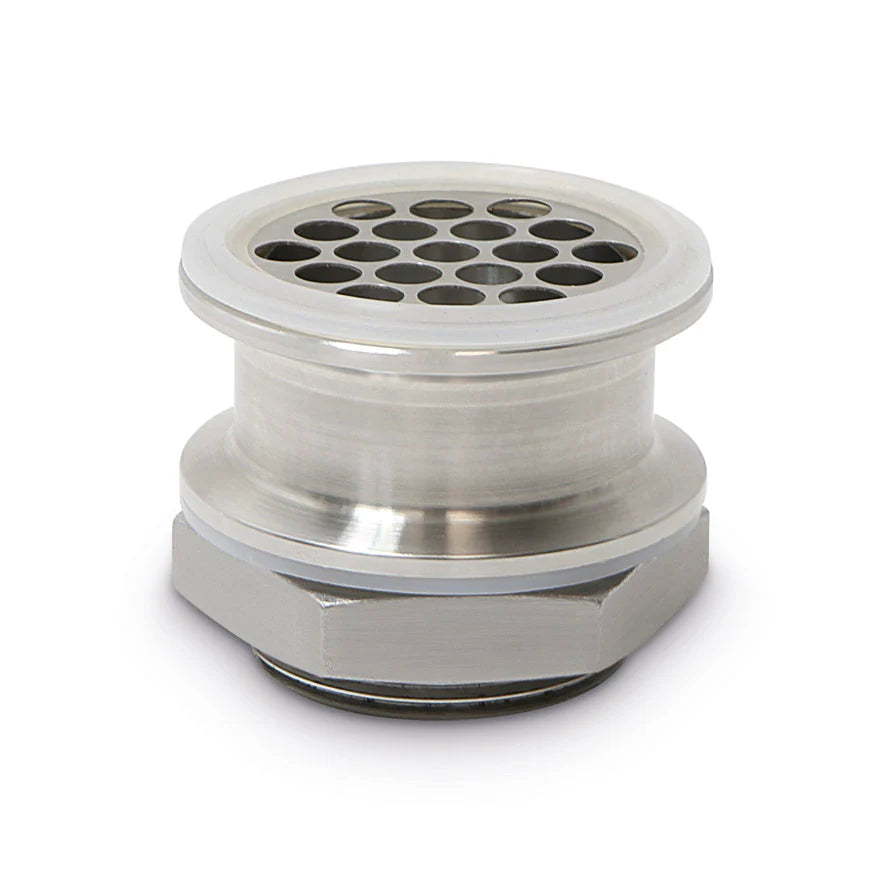

- 2" Tri-Clamp to DN40 Threaded Adapter
