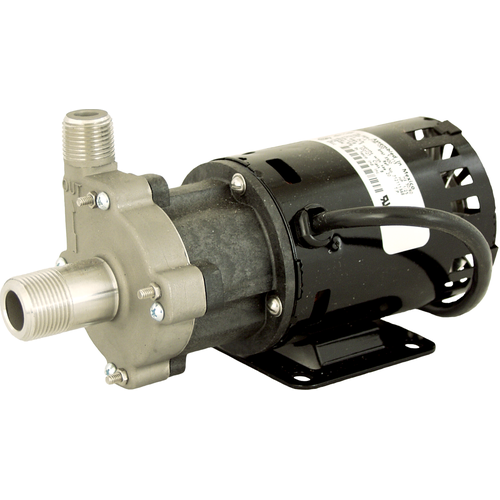

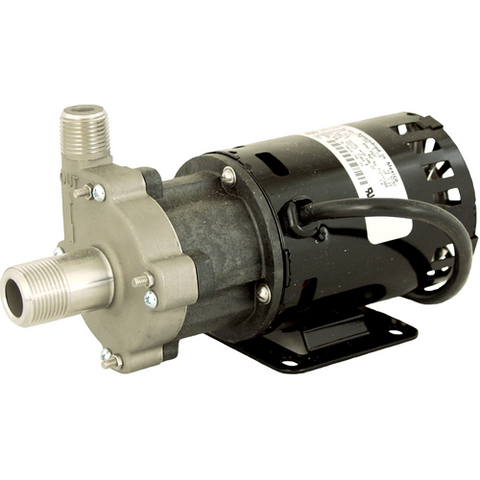

A Stainless Steel pump housing is food-grade and nearly indestructible. Stainless steel is the material of choice for professional breweries because it is a durable, food-grade metal that can withstand caustic chemicals and can also be effectively sanitized. This housing has a 3/4" mpt for the center inlet and a 1/2" mpt outlet.
The magnetic drive acts as a clutch allowing the user to put back-pressure on the pump to slow down flow. With a ball valve on the outflow, you can slow flow all the way to nothing. Since it is a magnetic drive, it is not self priming, you must put the pump under the level of the liquid source. This pump has an installed bracket to allow mounting. This is a tough little pump with a 1/25 hp, continuous-duty 1.4 Amp motor which can be run non-stop for extended periods. This pump has a maximum flow of 7.2 GPM with a maximum head of 12 feet. For an example of typical usage: with a head of 6' it will pump 3.25 GPM and with an 8' head it will pump 2.5 GPM.
Motor requires 115v 50/60HZ power requirements.
- 3/4" mpt center inlet
- 1/2" mpt outlet
- 7.2 gpm maximum flow
- 12 foot maximum head
- 115V 50/60HZ power requirement.
- 6 foot power cord
- 250 Fahrenheit or 121 Celsius max liquid temperature
