KOMOS 3" Stainless Shank Assembly

Description

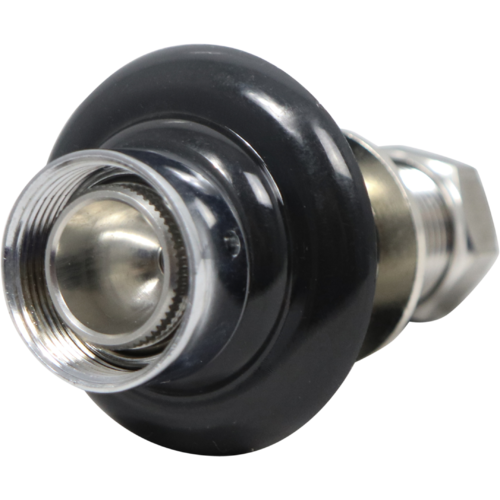

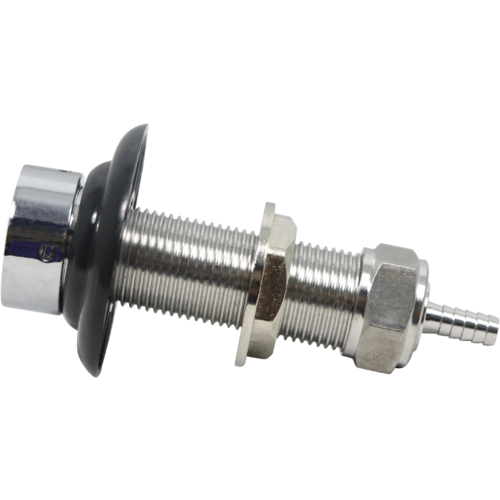

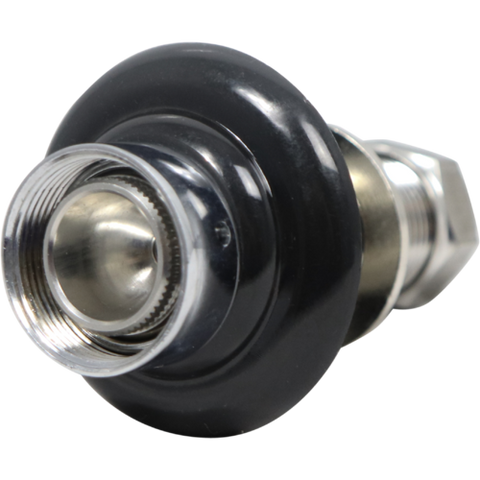

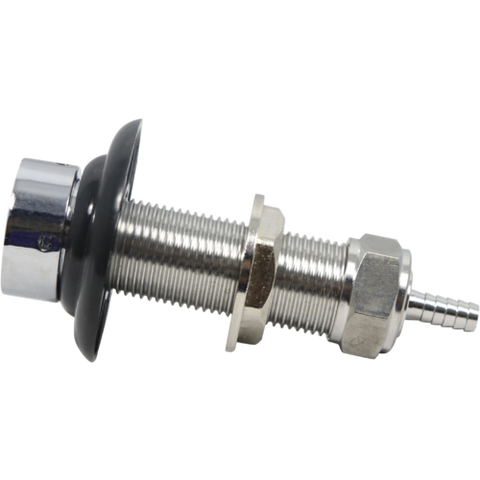

This stainless steel shank assembly includes a back nut, plastic collar (flange), and a 3/16" tailpiece with hex nut and gasket. If desired, the barb can be removed and swapped for a different size or replaced with a Duotight x Beer Thread Adapter. This size of beer shank is a popular choice for building your own custom draft system. Typically installed in the door of a refrigerator or the wooden collar of a converted chest freezer (keezer).

Sizing Note: The shank’s listed size refers to the total length of threaded pipe. Approximately 1-1/8” are needed to account for the thickness of the finishing collar on the front and the space for the locknut on the back. Please take this into account when sizing the shank for your project.

Installation Note: On a fridge there are generally no coolant lines running through the door but please check to see there are no lines connecting the door and the rest of the refrigerator. To test for coolant lines on a freezer start with a warm freezer then plug the unit in with the lid open. You should be able to see the lines form condensation on the inside of the freezer where there are lines running. Please still use caution when drilling.

Dimensions:

  • 4-1/4" - Total Length (Tip to Tip)
  • 3-1/8" - Shank Length (Without Nut & Nipple)
  • 2-1/4" - Thread Length
  • 1-3/4" - Pass Through Length
  • 3/16" Nipple
California Recipients: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
      Product form

      This stainless steel shank assembly includes a back nut, plastic collar (flange), and a 3/16" tailpiece with hex nut and gasket.... Read more

      Free pickup in our shop(s)

      4 in stock

      $19.99
