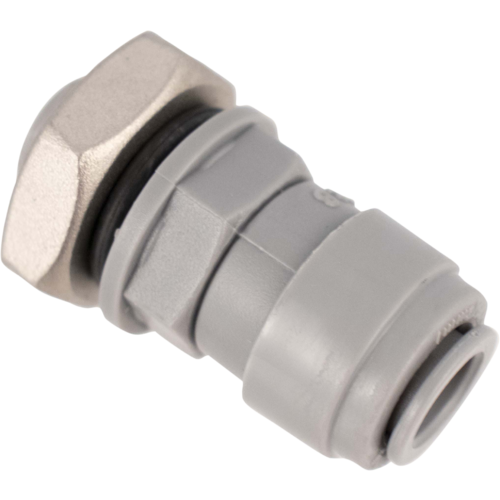

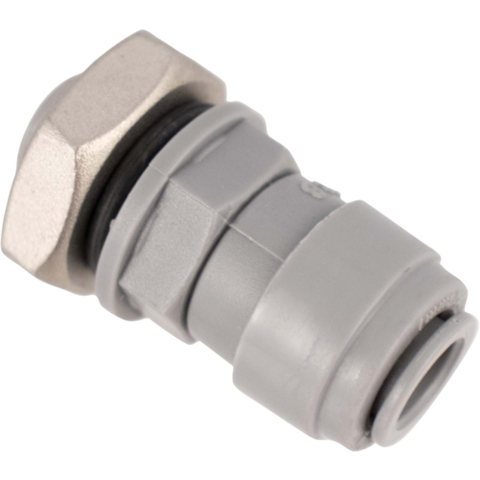

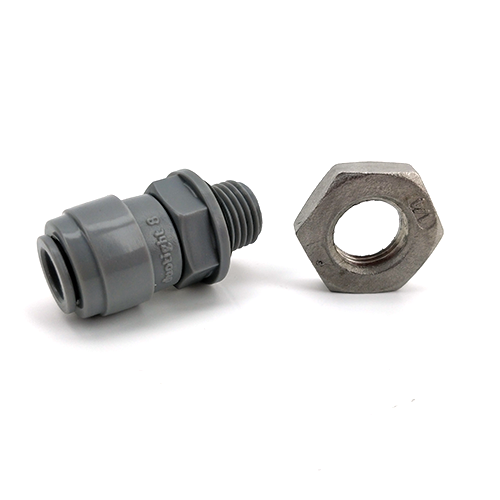

Duotight 8mm (5/16) x 1/4" BSP Male Bulkhead

Description

This Duotight Bulkhead is the same one used for installing the Thermowell into the lid of the FermZilla. Allows you to add a bulkhead to just about anything that can then be connected to with EVABarrier 8 mm OD Tubing or 5/16" OD stainless or copper tubing.

Duotight offers superior quality when compared to other push-in fittings. Their double EPDM O-ring design provides a more complete and reliable seal, protecting against leaks even when tubing is bent around tight corners. They are suitable for both beverage and gas applications, and are pressure rated to 100 psi. Tubing can be released by simply pushing in the collet and pulling the line out. No need for clamps or cutting lines!

Features:
  • Insert tubing and firmly push to connect
  • Easily release tubing by pushing in the collet
  • Suitable for both gas & beverage applications
  • Made from food-grade acetal plastic
  • Double O-rings made from highly chemical resistant EPDM
  • Locking teeth made from stainless steel
  • Pressure rated to 150 psi
  • Temperature rated to 212°F (100°C)


Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

    Product form

    This Duotight Bulkhead is the same one used for installing the Thermowell into the lid of the FermZilla. Allows you... Read more

    Free pickup in our shop(s)

    15 in stock

    $4.49

      • Shipped today? Order within: Oct 04, 2024 13:00:00 -0700

      Description

      This Duotight Bulkhead is the same one used for installing the Thermowell into the lid of the FermZilla. Allows you to add a bulkhead to just about anything that can then be connected to with EVABarrier 8 mm OD Tubing or 5/16" OD stainless or copper tubing.

      Duotight offers superior quality when compared to other push-in fittings. Their double EPDM O-ring design provides a more complete and reliable seal, protecting against leaks even when tubing is bent around tight corners. They are suitable for both beverage and gas applications, and are pressure rated to 100 psi. Tubing can be released by simply pushing in the collet and pulling the line out. No need for clamps or cutting lines!

      Features:
      • Insert tubing and firmly push to connect
      • Easily release tubing by pushing in the collet
      • Suitable for both gas & beverage applications
      • Made from food-grade acetal plastic
      • Double O-rings made from highly chemical resistant EPDM
      • Locking teeth made from stainless steel
      • Pressure rated to 150 psi
      • Temperature rated to 212°F (100°C)


      Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.
